Features

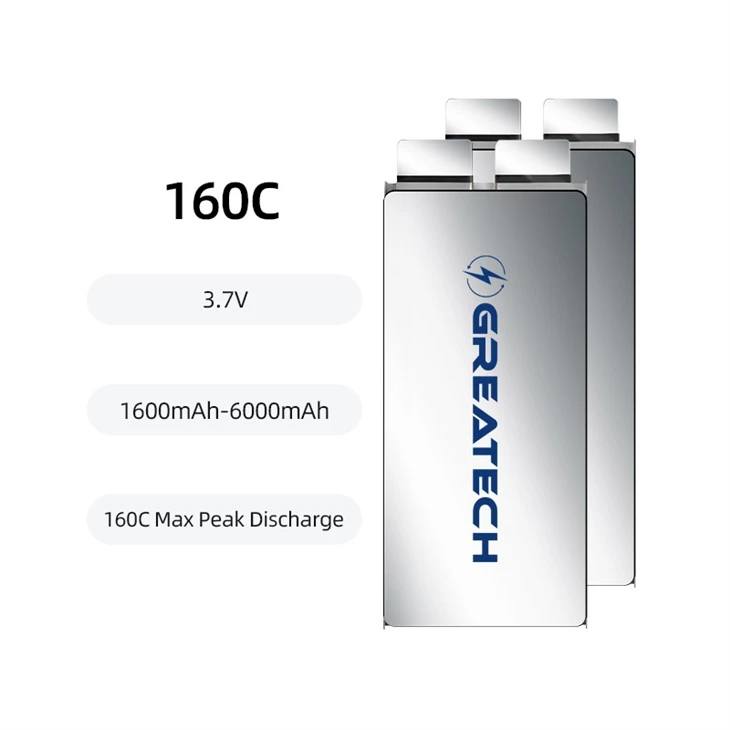

● Maximum peak discharge rate reaches 160C

● Outstanding high-frequency intermittent discharge capability: supports 25 consecutive 120C pulse discharges with a 2-second interval between each pulse

● Wide working temperature window from -30°C to +60°C with superior low-temperature resistance

1.Retains 80% of its rated capacity output at -30°C

2.Completes 20 cycles of 120C pulse discharge within 2.1 seconds each at -20°C

3.Supports 0.5C constant-current charging environment at -10°C

Reference Models

W'L(mm)	Voltage	Capacity	Rate	Thickness(mm)	Weight(g±5%)
60*81mm	3.7V	1600mAh	1C/60C/300C	4.4mm	46g
60*80mm	3.7V	2500mAh	1C/60C/300C	6.3mm	66g
60*80mm	3.7V	2500mAh	1C/35C/100C	5.7mm	60g
67*88mm	3.7V	3000mAh	1C/35C/100C	5.5mm	73g
63*147mm	3.7V	6000mAh	1C/60C/120C	6.7mm	136g
70*139mm	3.7V	6000mAh	1C/35C/100C	6.3mm	176g
