As a supplier of 12V batteries, I often get asked about the power consumption of a 12V battery charger. Understanding this is crucial for both individual users and businesses, as it can impact energy costs and the overall efficiency of battery charging systems. In this blog post, I'll delve into the factors that influence the power consumption of a 12V battery charger and provide some practical insights.
Understanding the Basics of Power Consumption
Power consumption is typically measured in watts (W), which is the product of voltage (V) and current (A), according to the formula P = V × I. In the case of a 12V battery charger, the voltage is fixed at 12 volts, but the current can vary depending on several factors.
The power consumption of a battery charger is not constant throughout the charging process. When a battery is deeply discharged, the charger will draw more current to replenish the lost energy quickly. As the battery approaches full charge, the charger will reduce the current to avoid overcharging.
Factors Affecting the Power Consumption of a 12V Battery Charger
Battery Capacity

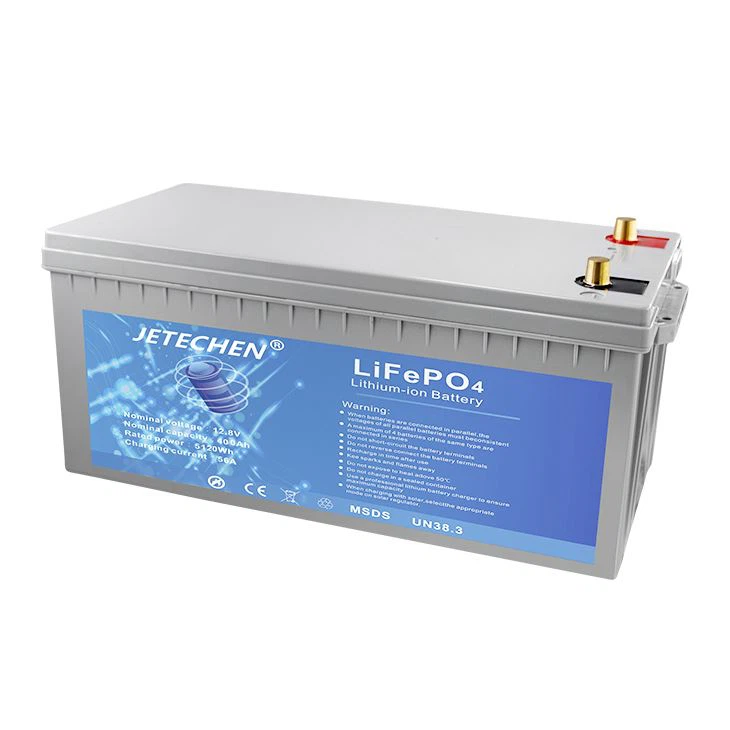

The capacity of the battery being charged is one of the most significant factors influencing power consumption. A larger capacity battery will require more energy to charge fully. For example, a 12V 314Ah LiFePO4 Lithium Battery will consume more power during charging compared to a 12V 200Ah LiFePO4 Lithium Battery.

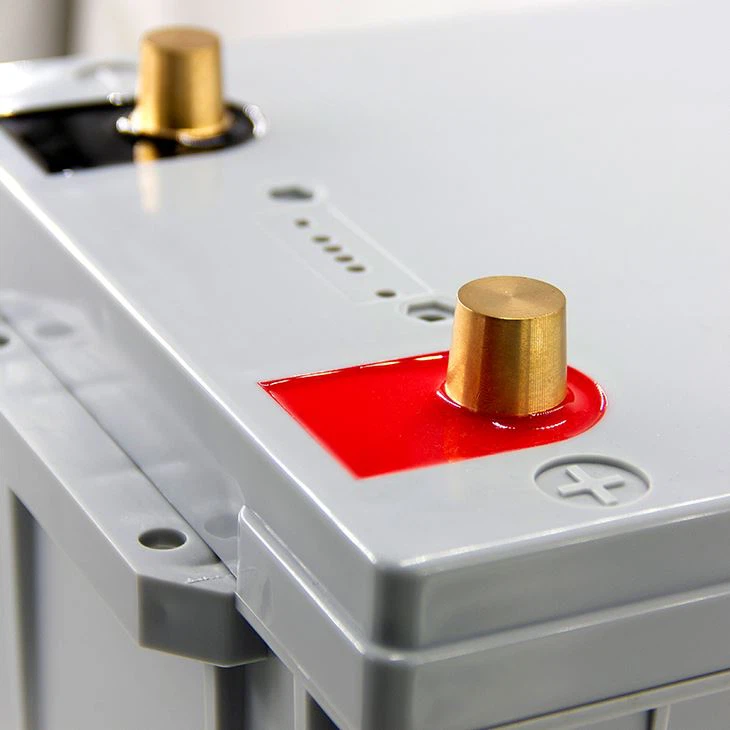

To calculate the approximate energy required to charge a battery, you can use the formula: Energy (Wh) = Voltage (V) × Capacity (Ah). For a 12V 200Ah battery, the energy required is 12V × 200Ah = 2400 Wh or 2.4 kWh. However, this is a theoretical value, and in reality, the charger's efficiency and other factors will affect the actual power consumption.
Charger Efficiency
The efficiency of a battery charger is another crucial factor. No charger is 100% efficient, and some energy is lost as heat during the charging process. A high - efficiency charger will convert more of the input electrical energy into chemical energy stored in the battery, resulting in lower power consumption.
Most modern 12V battery chargers have an efficiency ranging from 80% to 95%. For example, if a charger has an efficiency of 90%, and you need to charge a battery with a theoretical energy requirement of 2400 Wh, the actual energy drawn from the power source will be 2400 Wh / 0.9 ≈ 2667 Wh.
Charging Rate
The charging rate, also known as the charge current, can significantly impact power consumption. A charger with a higher charging rate will draw more current and consume more power per unit of time. However, it will also charge the battery faster.
Some chargers allow you to adjust the charging rate. If you have more time to charge the battery, using a lower charging rate can be more energy - efficient, as it reduces the heat loss and may extend the battery's lifespan.
Battery State of Charge
The initial state of charge (SOC) of the battery affects power consumption. A battery that is almost fully charged will require less power to reach full charge compared to a deeply discharged battery. When the battery is close to full charge, the charger will enter a maintenance or trickle - charge mode, where the power consumption is relatively low.
Calculating the Power Consumption of a 12V Battery Charger
To calculate the power consumption of a 12V battery charger, you need to know the charger's input power and the charging time. The input power can usually be found on the charger's label, which indicates the voltage and current it draws from the power source.
Let's assume you have a 12V 280Ah LiFePO4 Lithium Battery and a charger with an input power of 150 W. If the charger takes 20 hours to fully charge the battery, the total power consumption will be 150 W × 20 h = 3000 Wh or 3 kWh.
Practical Tips to Reduce Power Consumption
Choose a High - Efficiency Charger
Investing in a high - efficiency charger can save you money on energy costs in the long run. Look for chargers with an efficiency rating of at least 90%.
Optimize the Charging Rate
If time allows, use a lower charging rate. This not only reduces power consumption but also helps to extend the battery's lifespan.
Charge at the Right Time
If you are on a time - of - use electricity tariff, charge your batteries during off - peak hours when the electricity rate is lower.
Impact of Power Consumption on Different Applications
Automotive Applications
In automotive applications, the 12V battery charger is usually part of the vehicle's charging system. The alternator charges the battery while the engine is running. Understanding the power consumption of the charging system is essential for fuel efficiency, as the alternator's operation requires engine power.
Renewable Energy Systems
In renewable energy systems such as solar or wind power systems, 12V batteries are often used for energy storage. The power consumption of the battery charger can affect the overall efficiency of the system. Using a high - efficiency charger can ensure that more of the renewable energy generated is stored in the batteries.
Conclusion
The power consumption of a 12V battery charger is influenced by several factors, including battery capacity, charger efficiency, charging rate, and the battery's state of charge. By understanding these factors, you can make informed decisions to reduce power consumption and optimize the charging process.
As a 12V battery supplier, I am committed to providing high - quality batteries and offering valuable advice on battery charging and usage. If you are interested in purchasing our 12V batteries or have any questions about power consumption and battery charging, please feel free to contact us for further discussion and procurement negotiation.
References
- Battery University: A comprehensive resource for battery - related information, including charging principles and power consumption.
- Electrical Engineering textbooks: Provide in - depth knowledge of electrical circuits and power calculations.
